Antaira’s New Unmanaged PoE+ Switches with Gigabit Fiber Uplinks
Antaira Technologies announced its expansion in the industrial PoE+ networking infrastructure family with the LNP-0702C-SFP and LNP-0702C-SFP-24 series.

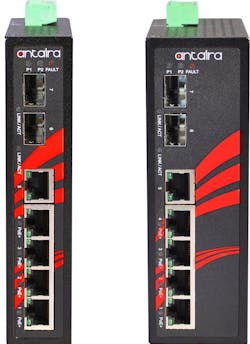

Antaira Technologies’ LNP-0702C-SFP and LNP-0702C-SFP-24 series are a cost effective 7-port industrial PoE+ gigabit unmanaged Ethernet switch, with 48~55VDC high voltage power input (LNP-0702C-SFP) and 12~36VDC low voltage power input (LNP-0702C-SFP-24). Each unit is designed with five 10/100Tx ports, four of which support IEEE 802.3at high power PoE (30W/port) and two dual rate 100/1000Fx SFP slots.
These product series provide a high EFT, surge (2,000 VDC), ESD (6,000VDC), and reverse polarity protection to prevent any unregulated voltage and can support the power redundancy feature using a dual power input design. There is also a built-in relay warning function to alert maintainers when power failures occur.
Antaira’s new LNP-0702C-SFP and LNP-0702C-SFP-24 series have been designed to fulfill special needs within industrial automation, outdoor applications, and extreme ambient weather environments.
The IP30 rated LNP-0702C-SFP and LNP-0702C-SFP-24 are backed by a five year warranty. These units are compact, fanless, and DIN-Rail/wall mountable. Each unit is built to withstand industrial networking hazards like shock, drop, vibration, electromagnetic interference (EMI). The unit also has temperature extreme version options for either a standard temperature range (-10 to 70°C) or an extended operating temperature range (-40 to 75°C). The LNP-0702C-SFP model has dimensions of 30mm (W) x 142mm (H) x 99mm (D) and a unit weight of 1.3 pounds. The LNP-0702C-SFP-24 model has dimensions of 46mm (W) x 142mm (H) x 99mm (D) and a unit weight of 1.4 pounds.
