Antaira Technologies announced its expansion in the industrial PoE+ networking infrastructure family with the LMP-0602 and LMP-0602-24 series.

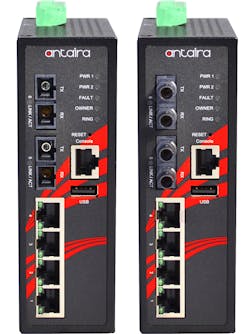

Antaira Technologies’ LMP-0602 and LMP-0602-24 series are a cost-effective 6-port industrial PoE+ managed Ethernet switch that supports a 48~55VDC high voltage power input (LMP-0602) and a 12~36VDC low voltage power input with a built-in voltage booster (LMP-0602-24). Each unit is designed with four 10/100Tx Fast Ethernet ports that are IEEE 802.3 at/af compliant (PoE+/PoE) with a PoE+ power output up to 30W per port. The additional dual 100Fx fiber ports support both an SC or ST type connection, and either a multi-mode (2Km) or single-mode (30Km) option. The dual power input designed product series provides a reverse polarity, EFT, surge (2,000VDC) and ESD (6,000VDC) protection. There is also a built-in relay warning function to alert maintainers when power failures occur.
This product series is pre-loaded with “Layer 2” network management software, of which, it supports an ease of use Web Console or Telnet using a serial console with CLI configuration. All Antaira managed switches provide a redundant ring network function with RSTP and the ITU-G.8032 support, which eliminates the compatibility issue for any existing network concern. In addition, the built-in SNMP, VLAN, IGMP, and QoS features support the network planners to increase data transmission performance within the network. The external USB2.0 port allows users to export and save all the configuration settings. In addition, the port specific customizable labeling feature allows network planners to name each connection port. This allows for easy remote management by being able to easily read field devices.
The unit also has temperature extreme version options for either a standard temperature range (-10 to 70°C) or an extended operating temperature range (-40 to 75°C). The model series have the dimensions of 46mm (W) x 142mm (H) x 99mm (D) and a unit weight of 1.5 pounds.
