Antaira Technologies announced its expansion in the industrial PoE networking infrastructure family with the LMP-0601G-SFP and LMP-0601G-SFP-24 series.

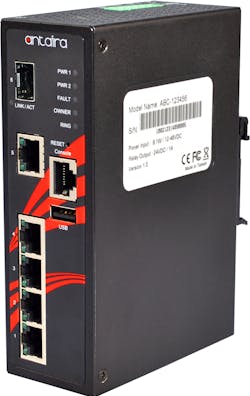

Antaira Technologies’ LMP-0601G-SFP and LMP-0601G-SFP-24 series are a cost effective 6-port industrial PoE+ managed Ethernet switch that supports a 48~55VDC high voltage power input (LMP-0601G-SFP) and a 12~36VDC low voltage power input with a built-in voltage booster (LMP-0601G-SFP-24). Each unit is designed with four 10/100/1000Tx Fast Ethernet ports that are IEEE 802.3at/af compliant (PoE+/PoE) with a PoE power output up to 30W per port, and one 10/100/1000Tx Fast Ethernet port. The additional dual rate 100/1000Tx SFP slot provides flexibility to expand the distance connection in any SFP fiber transceiver. This product series also supports jumbo frames up to 9.6Kbytes. The dual power input designed product series provides a reverse polarity, EFT, surge (2,000VDC) and ESD (6,000VDC) protection. There is also a built-in relay warning function to alert maintainers when power failures occur. This makes it ideal for applications requiring a high reliability, distance extension capability, and/or any harsh environment flexibility.
This product series is pre-loaded with “Layer 2” network management software, of which, it supports an ease of use Web Console or Telnet using a serial console with CLI configuration. All Antaira managed switches provide a redundant ring network function with RSTP and the ITU-G.8032 support, which eliminates the compatibility issue for any existing network concern. In addition, the built-in SNMP, VLAN, IGMP, and QoS features support the network planners to increase data transmission performance within the network. The external USB2.0 port allows users to export and save all the configuration settings. In addition, the port specific customizable labeling feature allows network planners to name each connection port. This allows for easy remote management by being able to easily read field devices.
The IP30 rated LMP-0601G-SFP and LMP-0601G-SFP-24 series are backed by a five year warranty. These units are compact, fanless, and DIN-Rail/wall mountable. Each unit is built to withstand industrial networking hazards like shock, drop, vibration, electromagnetic interference (EMI). The unit also has temperature extreme version options for either a standard temperature range (-10 to 70°C) or an extended operating temperature range (-40 to 75°C). The model series have the dimensions of 46mm (W) x 142mm (H) x 99mm (D) and a unit weight of 1.5 pounds.
