Axiomtek Releases 19-inch Multimedia Industrial Touch Panel PC for Kiosk Applications

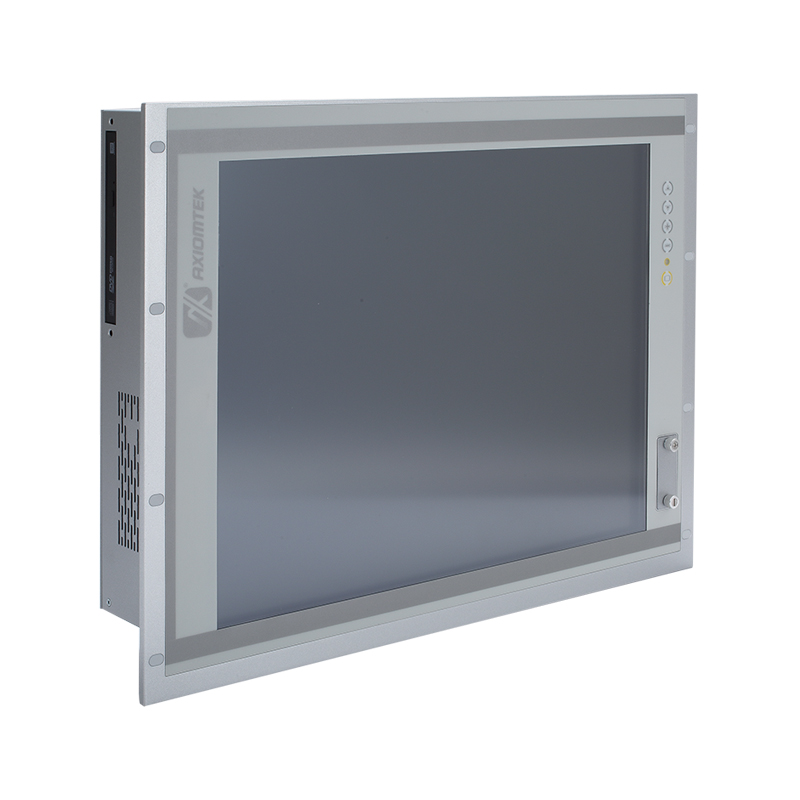

Axiomtek has introduced the P1197E-500, a 19-inch touch panel computer with industrial-grade mechanism design and flexible expansion interface. The P1197E-500 adopts a 19-inch SXGA TFT LCD display with 250 nits brightness. The robust 5-wire resistive touchscreen panel PC is powered by the 6th generation Intel Core i7/i5/i3, Celeron and Pentium processors in a LGA1151 socket with the Intel H110 chipset. It features built-in speakers for use in multimedia kiosk applications. The industrial touch panel system also offers an optional Wi-Fi 802.11 b/g/n module and WLAN antenna for wireless connectivity.

“The IP65-rated P1197E-500 from Axiomtek is ideal for kiosk, factory and automation industry. It reserved one PCIe x4 slot and one PCI slot for I/O expansion card, graphic card or more,” said Anthony Chen, product manager of product PM division at Axiomtek. “Furthermore, this slim-type 19-inch touch panel PC has only three screws on back chassis, making maintenance easier than ever.”

The CE-certified 19-inch expandable human machine interface supports up to 32 GB system memory of dual-channel DDR4-2133 to deliver high computing capability. The I/O interfaces include three RS-232 ports, one RS-232/422/485 port, four USB 3.0 ports, two USB 2.0 ports, two Gigabit Ethernet ports, one audio (Mic-in/Line-out), one VGA, one HDMI and one DisplayPort. One 3.5- or 2.5 inches SATA HDD is available for storage. To accommodate different types of settings, the P1197E-500 can be installed using a desktop stand, VESA arm, rack mount, or wall mounting. It also supports the Windows 10 and Windows 10 IoT Enterprise.
