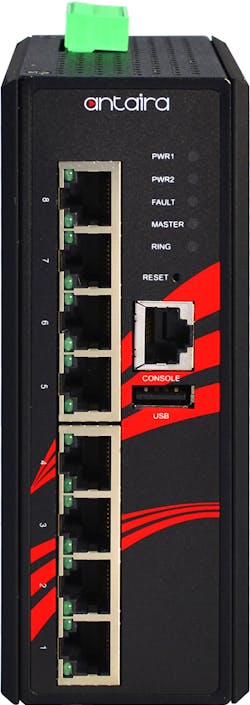

8-Port Industrial PoE+ Gigabit Managed Switches (12 to 36VDC)
Antaira Technologies is proud to announce its expansion in the industrial networking infrastructure family with proud to announce its expansion in the industrial networking infrastructure family with the LMP-0800G-24 series.
Antaira’s industrial gigabit managed Ethernet switch (LMP-0800G-24 series) has been designed to fulfill industrial applications in harsh or outdoor environments. Some applications where the LMP-0800G switch works well includes: power/utility, solar grids, windmills, mining infrastructures, factory/process control automation, ITS - roadway traffic control/monitoring, building facility outdoor infrastructures or security surveillance and access control systems.
Antaira Technologies’ LMP-0800G-24 series is a cost effective 8-port industrial gigabit PoE+ managed Ethernet switch with a 12~36VDC low voltage power input that has a built-in voltage booster to support a full 48VDC PoE power output for each PoE port. Each unit is designed with eight 10/100/1000Tx gigabit ports that are IEEE 802.3at/af compliant (PoE+/PoE) with a PoE power output up to 30W per port. With a 16 Gigabit backplane speed, the LMP-0800G-24 supports Jumbo Frames and wide bandwidth for huge Ethernet data packet transmission for edge level connectivity solutions. The product series provides high EFT, surge (2,000VDC) and ESD (6,000VDC) protection. The unit is built with a dual power input design with reverse polarity protection. There is also a built-in relay warning function to alert maintainers when power failures occur. This makes it ideal for applications requiring high reliability and distance extension.
This product series is pre-loaded with “Layer 2” network management software that supports an ease of use Web Console or Telnet through the serial console by CLI configuration. All Antaira managed switches provide the ring network redundancy function with STP/RSTP/MSTP and the ITU-T G.8032 (ERPS – Ethernet Ring Protection Switch) protocol which supports a <50ms network recovery time, eliminating the compatibility issue for any existing network concerns. The advanced network filtering and security functions, IGMP, VLAN, QoS, SNMP, Port lock, RMON, Modbus TCP and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. Plus, the advanced PoE ping alarm software function allows users to recycle power on any remote powered device (PD) through PoE ports. The external USB2.0 port allows users to export and save all the configuration settings. Lastly, the flexible “custom label” feature allows networking planners to name each connection port. By naming each port, the networking planners can easily manage remote field devices.
The LMP-0800G-24 series is backed by a five year warranty and the units are IP30 rated, compact, fanless, DIN-Rail and wall mountable. Each series is built to withstand industrial networking hazards like shock, drop, vibration, electromagnetic interference (EMI) and extreme temperatures. There are two operating temperature version models for either standard temperature (-10 ~ 70°C) or extended temperature (-40 ~ 75°C). The models have the dimensions of 54mm (W) x 99mm (D) x 142mm (H) and a unit weight of 2.1 pounds.
